Gas Turbine Generator
- Gas turbine generator
- 45MW
- 35MW
- 25MW
- Description:
Features: Available to be combined with other mobile generators, distribution, substation, energy storage, and integrated control devices to meet sophisticated power needs.
Key Parameters
| Model | GTG45MW |
GTG35MW |
GTG25MW |
| Power |
42.5MW |
34MW | 24MW |
| Fuel Type | Natural gas / Liquid /Dual fuel / Other fuel | ||
| Efficiency | 42.00% | 39.50% | 37.00% |
| Heat Rate | 8,500.00KJ/KWh | 9100.00KJ/KWh | 9550.00KJ/KWh |
| Voltage | 13.8KV±5% | ||
| Frequency | 50Hz / 60Hz | ||
| NOx Emission |
≤25ppmv, 15%O2 (Gas,Water or Steam) |
||
|

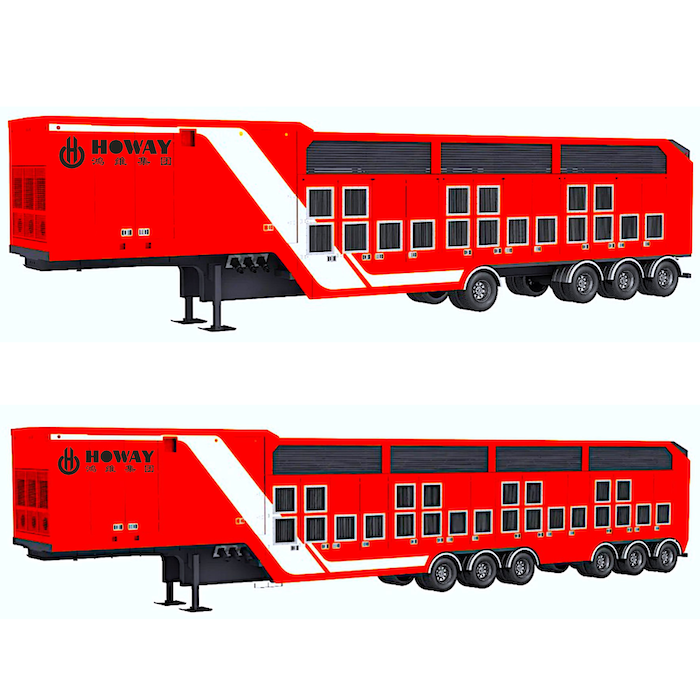

Dimension /Weight |
Gas turbine trailer: 17750X3000X4250mm/51000Kgs
Generator trailer: 16250X3000X4250mm/79000Kgs
Inlet system: 9450X3000X3400mm/35000Kgs
Exhaust system: 3000X3000X4250mm/10000Kgs |
General trailer: 21000X3000X4300mm/87000Kgs
Inlet trailer: 14900X3000X4250mm/23000Kgs
Exhaust system: 3000X3000X4200mm/7000Kgs |
General trailer: 21000X3000X4300mm/87000Kgs
Inlet trailer: 14900X3000X4250mm/23000Kgs
Exhaust system: 3000X3000X4200mm/7000Kgs
|
Note: The generated power is based on International Organization for Standardization(ISO) condition, with gas fuel LHV 47.5 MJ/kg.
· Ambient Temperature: 15℃
· Barometric Pressure:101.3 kPa.
· Relative Humidity: 60%
· Inlet Exhaust Losses: None.
For detailed information, please consult HOWAY team.
